Building Simulation

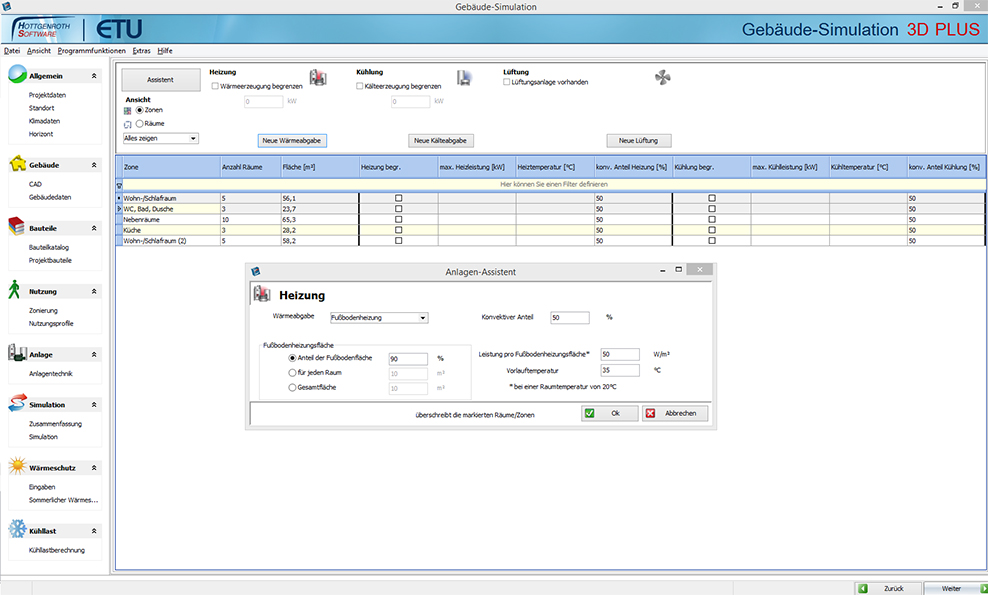

The software simulates the thermal behaviour of a building at an hourly resolution. Accurate information about the behaviour of a building at any desired point in time can be calculated from the detailed building characteristics, usage profiles and location-specific climate data.
Functions Available versions
Basic function
|
|
Integrated CAD package  |
|
|
|
|
Hourly simulation of a building’s thermal behaviour and heating demand based on building characteristics, usage profiles and local climate conditions (using the VDI 6007 methodology) |
|
|
Presentation of temperature curves (indoor air, outdoor air, perceived temperature, etc.) |
|
|
Identification of over- or under-heating hours |
|
|
Generation of detailed outputs, including graphical reports and CSV tables |
|
|
Effects of shading caused by neighbouring objects such as buildings, trees etc. |
|
|
Quickly assign rooms to pre-defined zones or add user-defined zones |
|
|
Checks compliance with summer overheating protection in accordance with the DIN 4108-2 standard for simulation |
Available versions
Prices excl. VAT
System requirements
Operation System:
Windows 7, 8 (expect Windows RT) and 10, with the active service pack (64 Bit)
Processor
Dual Core with 2 GHz, recommended Quad Core 3 GHz
Main memory
min 4. GB, recommended 16 GB
Harddrive
Recommended = SSD
Harddrive capacity
10 GB per Installation
Graphic board
hardware accelerated 3D-graphic board with Direct X 9.0C or higher, 128 MB internal memory
Screen
1280x1024 pixels with at least 32- colour depth
Network
LAN connection/WLAN to the Server-Computer, min. 1 GBit
Optional
Scanner with WIA Treiber
Attention: The programmed data-exchange can only be used with the current state of development of the respective software.
